| 非金属加强件松套层绞式全（内）填充光缆
金龙牌非金属加强件松套层绞式全 （内）填充光缆，采用高强度玻璃纤 维增加塑料（FRP）作为中心加强件， 周围排列松套光纤成紧套光纤组成缆 芯，全填充或管内填充油膏，外挤聚 乙烯或聚乙烯护套，构成一种完全不 含金属材料的光缆。也可根据用户特 殊需要，挤制LAP护层或钢带铠装护 层，制成非金属加强件铠装光缆。 适用范围： 电力通信、检测、控制系统。适于强 电磁场和高电位区域。 |
Non-metal Strength Element
Layer-type Jelly Filled Optical Fiber Cable
Jing Long
non-metal strength element layer-type optical fiber cables use FRP as central strength
element, stranded with loose tube in which one or more colored fibers are contained, with
inter tube or full filling jelly, extruded PE or PVC outer sheath.
The obvious feature of this type is immunity of Electro magnetic induction besides the advantages the loose-tube type cables have. We can also produce this type cables products with LAP or outer steel wires armoring sheath for especial user. Applications: Electric power system, Electric railways, Inspecting & Control system, suitable for strong electromagnetic field and high voltage. |

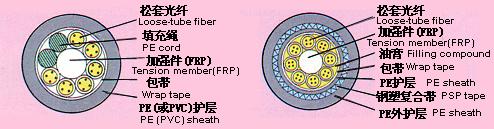

型号、结构、主要规范：TYPE STRUCTURE SPECIFICATION
| 型号 | GYFY (GRFV) | GYF(TY)S |
名称 规范 |
非金属加强件松套层绞式内填充聚乙烯(聚氯乙烯)护套通信用室外光缆 | 非金属加强件松套层绞式内(全)填充(聚乙烯护层)钢塑综合护层通信用室光缆 |
| 结构 |
|
|
| 芯数(根) | 2~32 | 2~32 |
| 外径(D)mm | 13 | 16 |
| 重量kg/km | 110 | 230 |
| 最大拉力N | FST1500; FLT1000 | FLT1500; FLT1000 |
| 最小弯曲半径 | 敷设时30D; 工作时20D | |
| 适用温度 | A,B,C,D | |
| 结构特征 | 全缆无金属构件、强电、强磁、强雷击对通信传输无影响，适用于架空、管道敷设。 | 金属加强件、金属铠装外护套、光缆具有优异抗侧压。防冲击，易弯曲等机械性能。适于架空，直埋和管道敷设应用，具有防雷击，抗电磁干扰特性。 |
